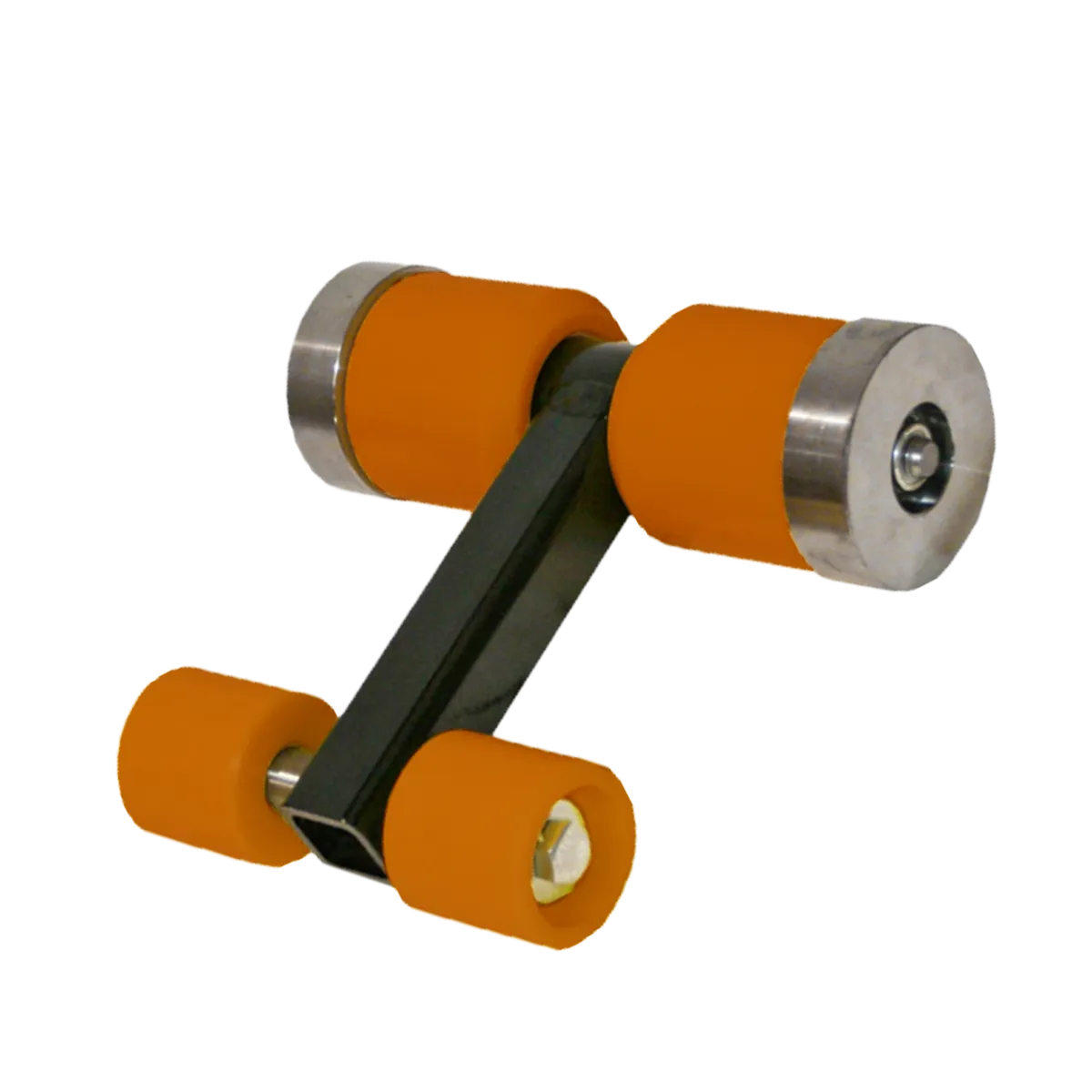

RCV Roller with Square Tube Assembly featuring D88K 2.5 inch Idler Wheels for car wash conveyor systems.

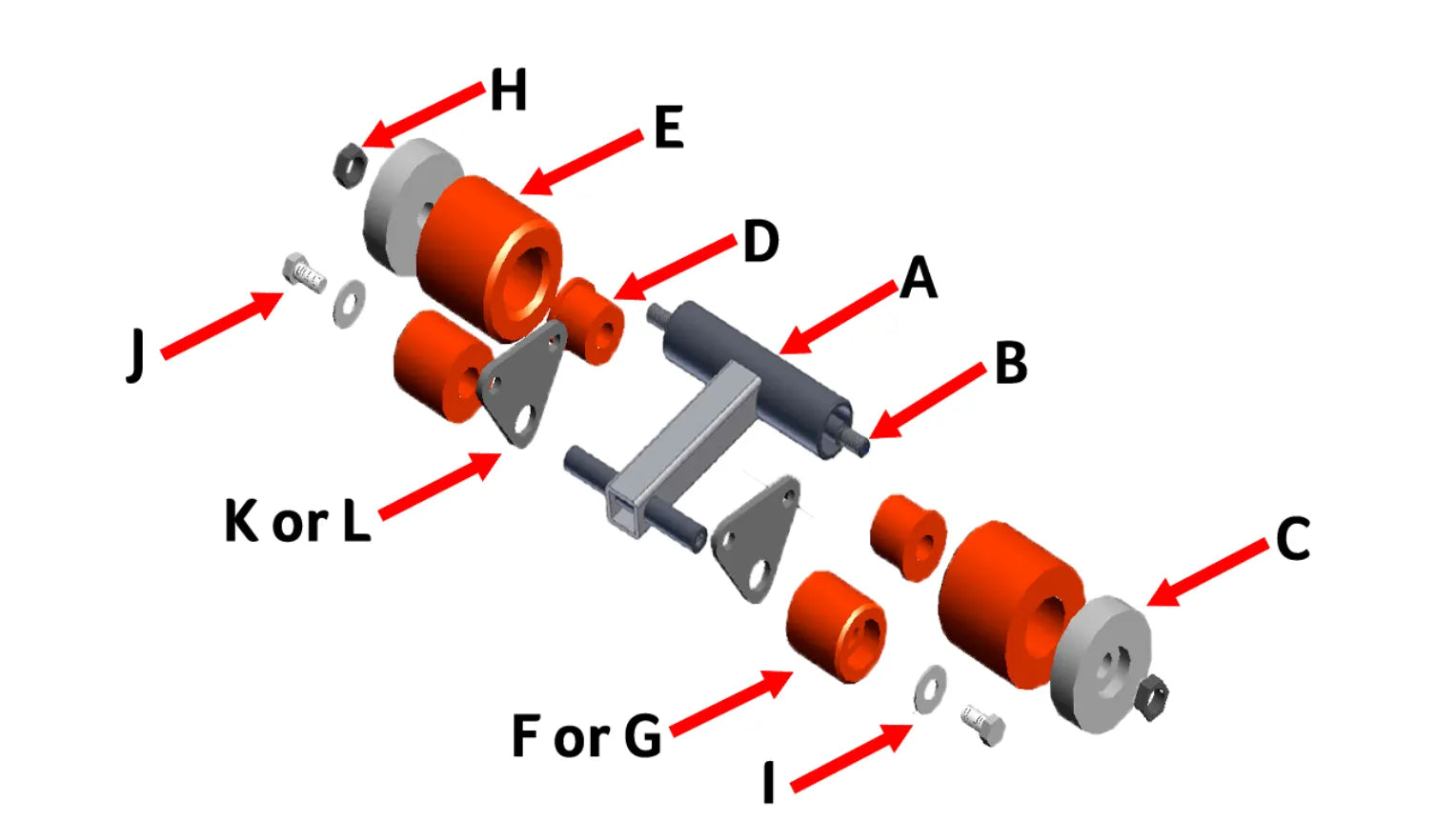

Exploded view of RCV Roller with Square Tube Assembly and D88K 2.5 inch Idler Wheels showing labeled parts including shaft, square tube, triangle plates, idler wheels, and fasteners.

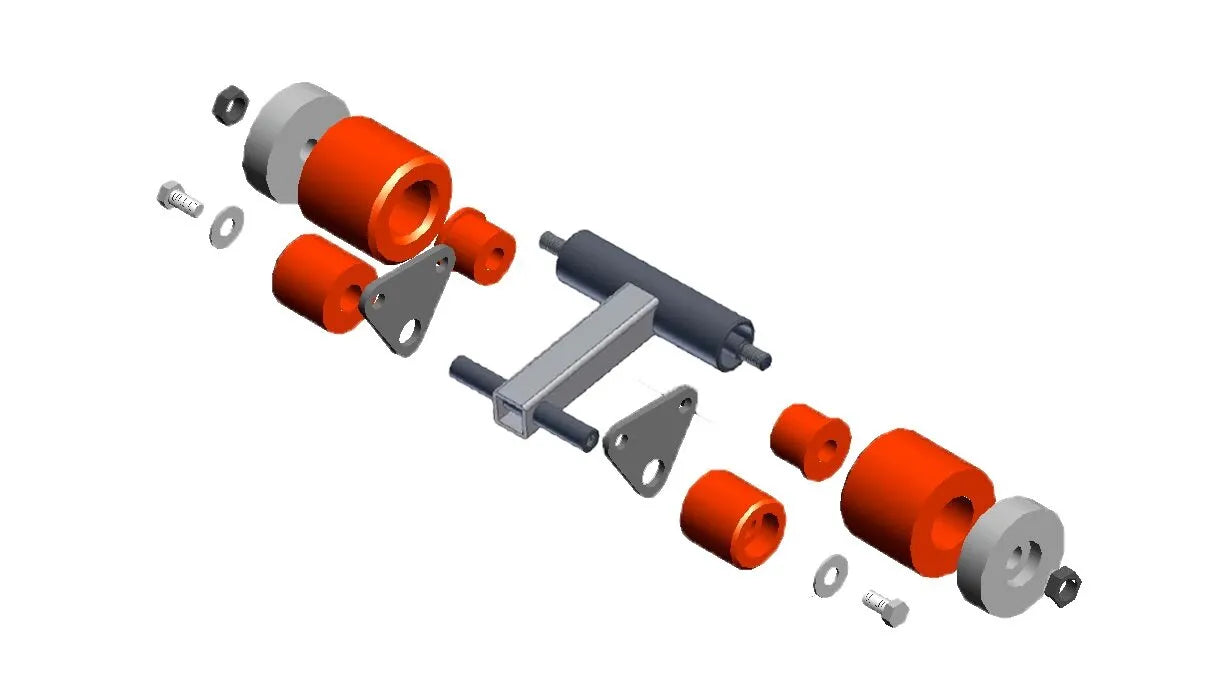

Exploded view of RCV Roller with Square Tube Assembly showing D88K 2.5 inch Idler Wheels, square tubing frame, triangle plates, spacers, and hardware components.

RCV Roller with Square Tube Assembly with D88K 2-1/2" Idler Wheel

$114.95$237.95 Save 51%

Manufacturer direct from 3E in La Habra, CA
Parts and supplies for self-serve, hand wash and full-service washes
Questions about fit or pricing? Call (714) 853-1095

In stock — ships from La Habra, CA
Need it installed? Our techs service self-serve, hand wash and full-service washes
Manufacturer direct from 3E
Free shipping on orders $250+ · Shipping info · Returns

Why 3E

Keep your wash open.

One sourceParts, chemicals and repairs from the same local team.

Manufacturer directChemicals made and shipped by 3E from La Habra, California.

Repair & maintenanceService for self-serve, hand wash and full-service car washes.

Real people answerQuestions about fit or pricing? Call (714) 853-1095.

Product details

Description

Product Description

The RCV Roller with Square Tube Assembly with D88K 2-1/2" Idler Wheel from 3E The Carwash Manufacturer is a premium 4-wheel roller assembly engineered for tunnel and automatic car wash conveyor systems.

Constructed with a reinforced steel square tube frame and precision UHMW idler wheels, this roller provides smooth vehicle movement, excellent load distribution, and long-lasting performance under continuous operation. Designed as an OEM-quality replacement, it ensures perfect compatibility for conveyor systems using D88K or C188 carrier links.

Item #: 1001-117

Specifications:

Type: 4-Wheel RCV Roller Assembly (Square Tube Design)
Frame Material: Heavy-duty welded steel
Roller Wheel Material: UHMW polyethylene
Idler Wheel Dimensions: (C) 2.5 inch diameter × 2.75 inch Idler Wheels
Chain Compatibility: D88K, D88X, D667K, X458
Carrier Link: D88K or C188

Applications & Fitment:

Replacement for Hanna and RCV 4-wheel roller assemblies with square tubing design
Compatible with D88K and C188 conveyor chain systems

RCV ROLLER WITH SQUARE TUBE PARTS

Part	Item Number	Description
A	1001-205	Frame only for 4-Wheel RCV Square Tube
B	1001-502	Shaft Roller 3/4" Dia. x 9-3/4" Length x 5/8-18 Fine Thread
C	1001-401	Steel Wheel 3-1/2 Dia. x 1" Width x 5/8-18 Fine Thread
D	401-55	Bushing 3/4" Bore for Roller/Correlator - Virgin Grade
E	1001-303	Pusher Wheel 3-3/8" x 3-1/16 x 2-1/32" Bore - Virgin grade
F	1001-354	Idler Wheel -- (C) 2-1/2" x 2-3/4"
G	1001-352	Idler Wheel -- (B) 2-1/4" x 2-1/4"
	1001-353	Idler Wheel -- (A) 2-1/4" Dia x 1-1/8"
H	1002-101	Hex Bolt 1/2-13 x 3/4" Zinc Plated Steel Grade 2 - Pack of 50
I	1002-202	Flat Washer USS 1/2" Zinc Plated Steel - Pack of 50
J	1002-310	Hex Nut Nylon-Lock 5/8-18" Zinc Plated Steel - Pack of 25
K	201-07	C-188 Triangle Plate
L	201-01	D88K Triangle Plate - Driver Side
	201-02	D88K Triangle Plate - Passenger Side
