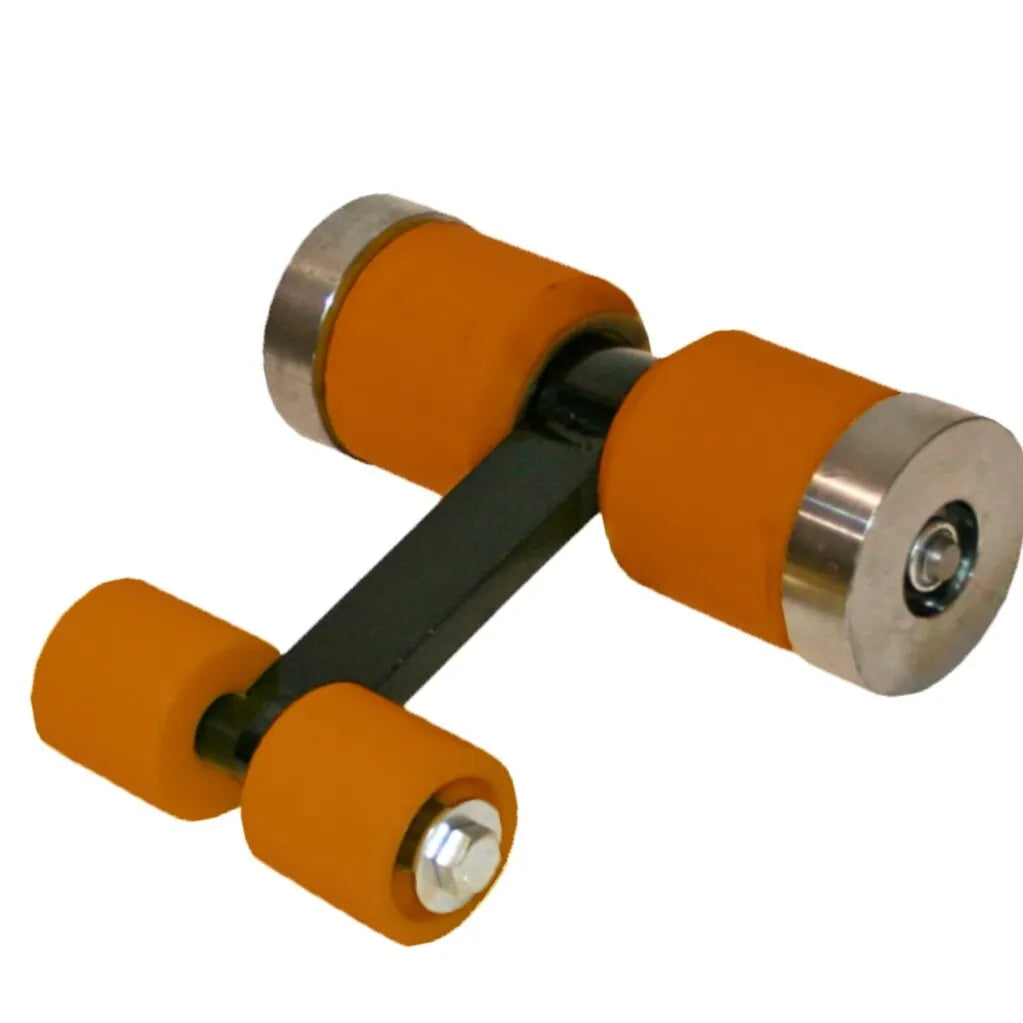

• RCV roller with flat bar assembly D88K 1.125 inch UHMW idler wheels for car wash conveyor systems.

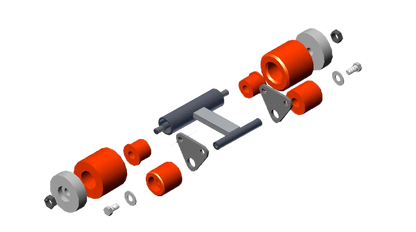

  • Exploded view of RCV roller with flat bar assembly D88K 1.125 inch idler wheels without labels showing individual roller parts for car wash conveyor system.

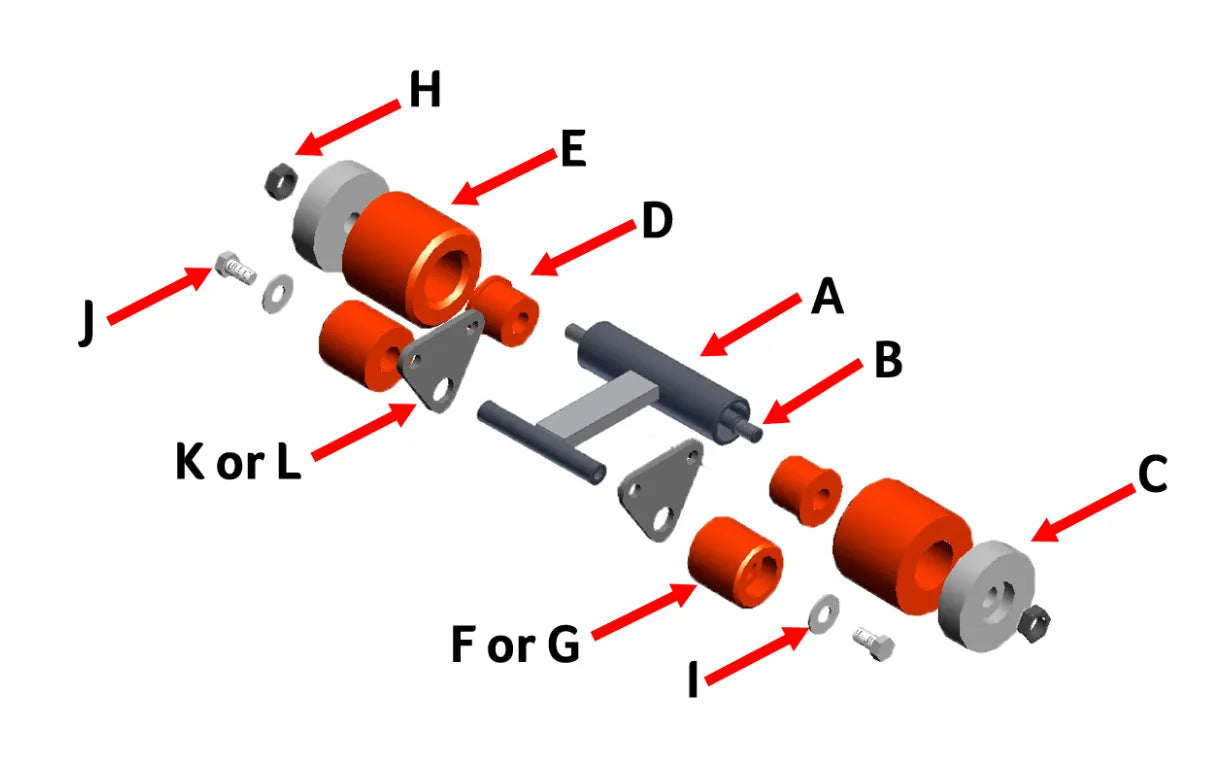

  • Exploded view of RCV roller with flat bar assembly D88K 1.125 inch idler wheels showing labeled parts A to L for car wash conveyor system.
1 3

RCV Roller with Flat Bar Assembly with D88K 1-1/8" Idler Wheel

$81.65 USD
$200.00 USD $81.65 USD
Sale Sold out
Shipping calculated at checkout.

Product Description

The RCV Roller with Flat Bar Assembly with D88K 1-1/8" Idler Wheel from 3E The Carwash Manufacturer is a heavy-duty 4-wheel roller assembly built for long-term performance in automatic and tunnel car wash conveyor systems. Its reinforced steel flat bar frame and 1-1/8" UHMW idler wheels ensure reliable operation under demanding wash conditions.

Designed as a direct replacement for Hanna and RCV conveyor systems, this roller uses a D88K or C188 Triangle Plate for compatibility and stability. The 2-1/4" diameter UHMW idler wheels provide balanced load distribution, corrosion resistance, and quiet performance. Manufactured in La Habra, Orange County, California, this roller delivers OEM-level reliability trusted by car wash operators across the U.S.

Item #: 1001-112

Specifications

  • Type: 4-Wheel Roller Assembly (RCV Flat Bar Design)
  • Material: Reinforced Steel Frame with UHMW Idler Wheels
  • Idler Wheel Dimensions: (A) 2-1/4" Diameter × 1-1/8" Width Virgin Grade UHMW
  • Carrier Link: D88K or C188 Triangle Plate
  • Chain Compatibility: D88K, D81X, SC78, C188 Chain Systems

Applications & Fitment

  • Replacement for: Hanna and RCV 4-Wheel Roller Assemblies
  • Compatible with: D88K and C188 Chain Systems
  • Fits: Hanna, Econocraft, and Belanger Car Wash Systems

Manufacturer: 3E The Carwash Manufacturer La Habra, California, USA

RCV ROLLER WITH FLAT BAR PARTS

Part

Item Number

Description

A

1001-204

4Whl RCV Flat Bar for Hannna - Frame Only

B

1001-502

Shaft Roller 3/4" Dia. x 9-3/4" Length x 5/8-18 Fine Thread

C

1001-401

Steel Wheel 3-1/2 Dia. x 1" Width x 5/8-18 Fine Thread

D

401-55

Bushing 3/4" Bore for Roller/Correlator - Virgin Grade

E

1001-303

Pusher Wheel 3-3/8" x 3-1/16 x 2-1/32" Bore - Virgin grade

F

1001-354

Idler Wheel -- (C) 2-1/2" x 2-3/4"

G

1001-352

Idler Wheel -- (B) 2-1/4" x 2-1/4"



1001-353

Idler Wheel -- (A) 2-1/4" Dia x 1-1/8"

H

1002-101

Hex Bolt 1/2-13 x 3/4" Zinc Plated Steel Grade 2 - Pack of 50

I

1002-202

Flat Washer USS 1/2" Zinc Plated Steel - Pack of 50

J

1002-310

Hex Nut Nylon-Lock 5/8-18" Zinc Plated Steel - Pack of 25

K

201-41

C-188 Triangle Plate

L

201-01

D88K Triangle Plate - Driver Side



201-02

D88K Triangle Plate - Passenger Side
