6 Wheel HPR with D88K Tri Plates 2-1/4" Idler Wheel

$96.95$300.95 Save 67%

Manufacturer direct from 3E in La Habra, CA
Parts and supplies for self-serve, hand wash and full-service washes
Questions about fit or pricing? Call (562) 501-5230

In stock — ships from La Habra, CA
Need it installed? Our techs service self-serve, hand wash and full-service washes
Manufacturer direct from 3E

Why 3E

Keep your wash open.

One sourceParts, chemicals and repairs from the same local team.

Manufacturer directChemicals made and shipped by 3E from La Habra, California.

Repair & maintenanceService for self-serve, hand wash and full-service car washes.

Real people answerQuestions about fit or pricing? Call (562) 501-5230.

Product details

Description

Product Description

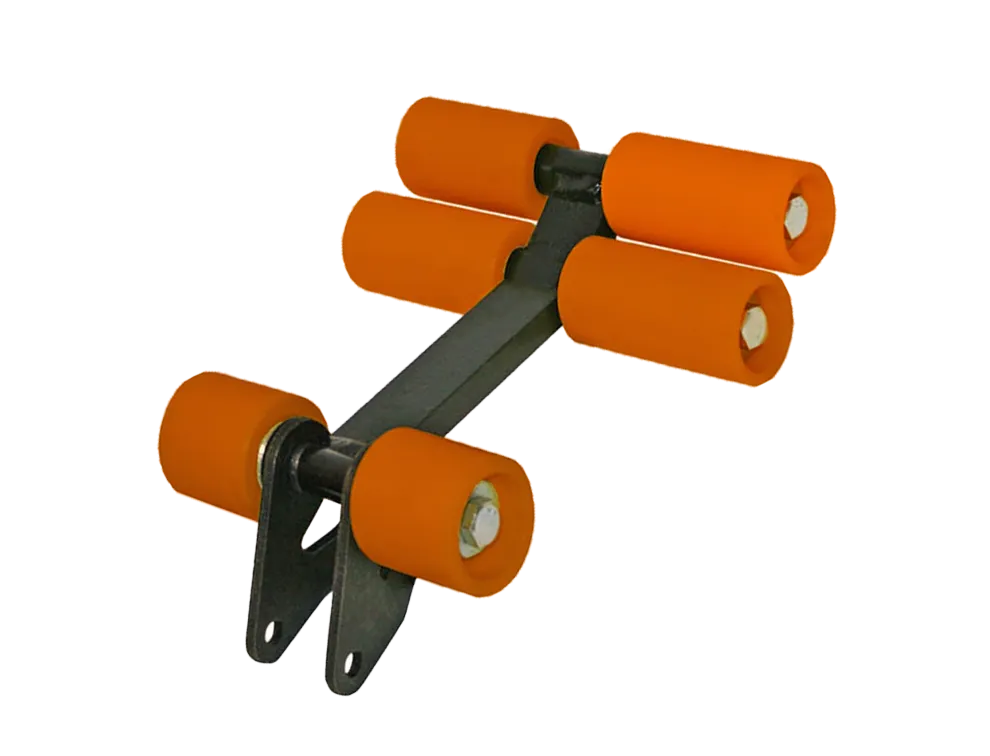

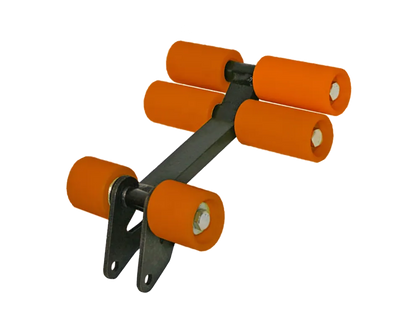

The 6 Wheel High-Profile Roller with D88K Tri Plates and 2-1/4" Diameter x 2-3/4" Width Idler Wheels by 3E The Carwash Manufacturer is made for superior performance, stability, and durability in tunnel and automatic car wash conveyor systems.

Built from heavy-duty materials and made for smooth operation, this roller assembly ensures reliable performance. Compatible with D88K chain and link systems, this six-wheel roller assembly provides balanced load distribution. It serves as a direct replacement for high-profile roller assemblies used in Hanna-style conveyor systems.

Item#: 1001-101

Specifications

Type: 6 Wheel High-Profile Roller Assembly
Carrier Links: Two (2) D88K Tri Plates
Idler Wheel Dimensions: 2.25 in Diameter x 2.75 in Width
Material: Steel Frame with UHMW Idler Wheels
Configuration: Six-wheel, high-profile design

Applications & Fitment

Direct replacement for Hanna high-profile roller assemblies
Compatible with D88K chain conveyor systems

Manufactured by: 3E The Carwash Manufacturer – La Habra, Orange County, CA

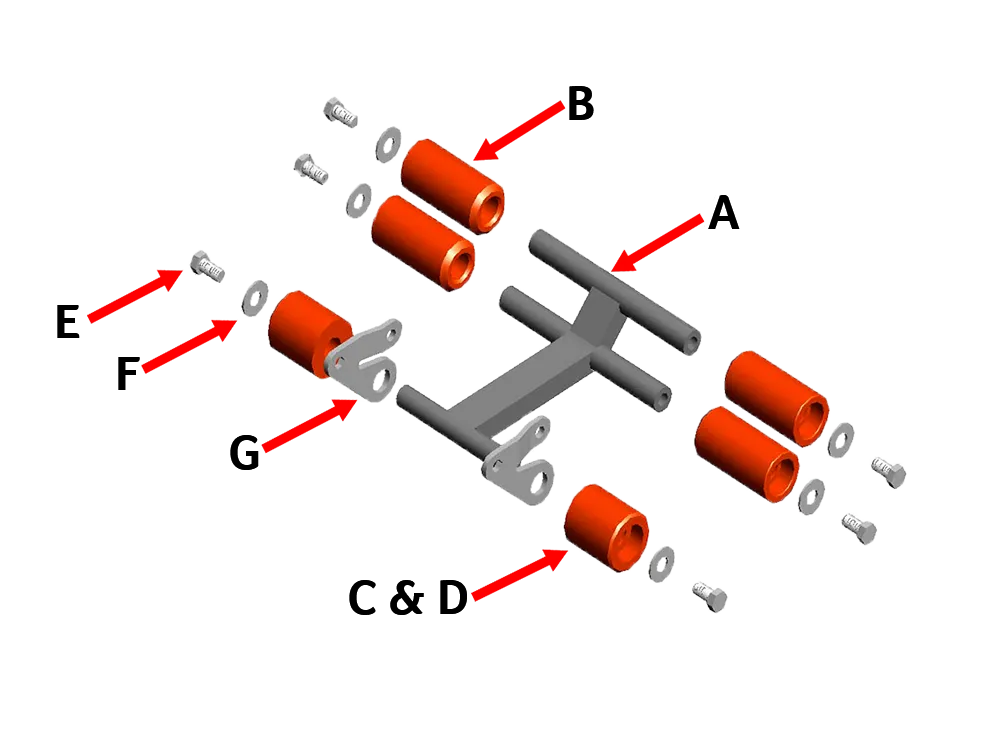

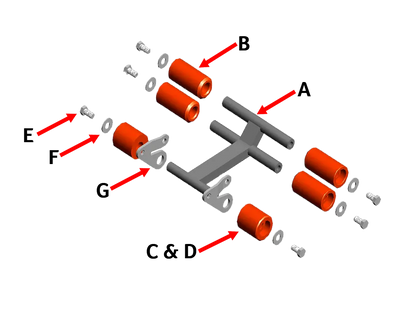

High-Profile Roller Parts

Part	Quantity	Item Number	Description
A	1	1001-201	Frame Only for 6-Wheel HPR
B	4	1001-301	Pusher Wheel 2" x 4"
C	2	1001-352	Idler Wheel -- (B) 2-1/4" x 2-1/4"
D	2	1001-354	Idler Wheel -- (C) 2-1/2" x 2-3/4"
E	*	1002-101	Hex Bolt Zinc 1/2"-13 x 3/4" Zinc Plated Steel Grade 2
F	*	1002-202	Flat Washer Zinc USS 1/2" Zinc Plated Steel
G	1	201-01	D88K Triangle Plates - Driver side
H	1	201-02	D88K Triangle Plates - Passenger Side
*Hardware sold in Kit (50pcs)
